Product Details

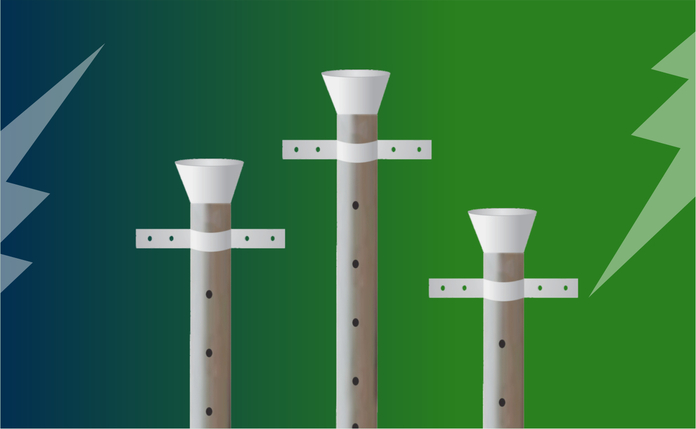

Cast Iron Earthing Pipes

MR Earthing Cast Iron Earthing Pipes are designed for dependable electrical earthing and substation grounding applications. Manufactured from cast iron, these pipes provide a robust earthing solution for installations requiring a reliable path for fault current dissipation into the earth.

BENEFITS

  • Durable cast iron construction
  • Suitable for electrical and substation earthing
  • Designed for vertical underground installation
  • Provides a path for safe fault current dissipation
  • Suitable for earthing installations as per applicable standards

SPECIFICATIONS

  • Material: Cast Iron (CI)
  • Nominal Diameter: 100 mm (4 inch)
  • Length: 2,500–3,000 mm
  • Wall Thickness: 13 mm (conventional type)
  • Installation: Vertical underground installation
  • Application: Electrical earthing and substation earthing
  • Standard: IS 3043 – Code of Practice for Earthing

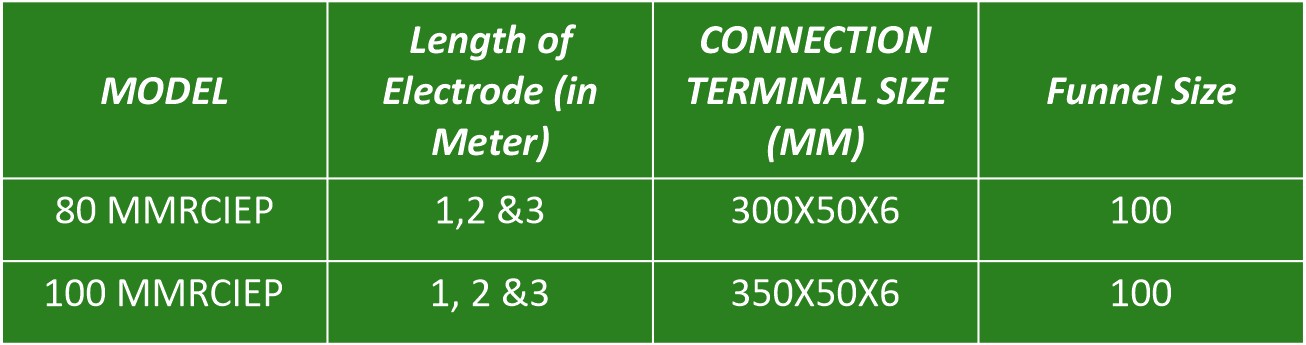

PACKAGING DETAILS

  • Model Number | Pipe Diameter | Pipe Length | Wall Thickness
  • CI-100 | 100 mm (4 inch) | 2500–3000 mm | 13 mm

Packaging Details

Packaging Details
