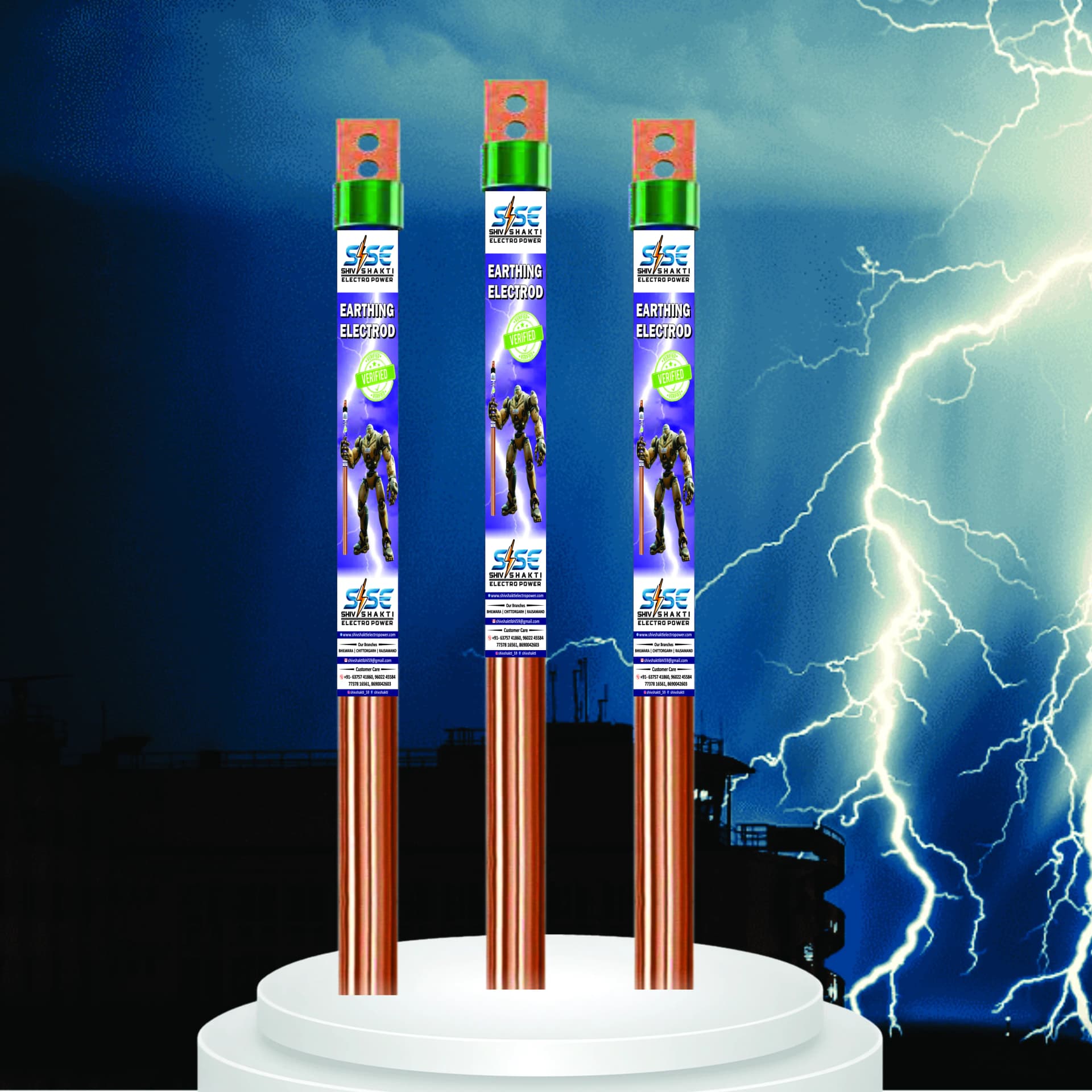

Copper Bonded Chemical Earthing Electrode

Overview

The Shiv Shakti Copper Bonded Chemical Earthing Electrode is engineered to provide reliable and maintenance-free grounding performance in a wide range of soil conditions. Manufactured using a copper-coated steel rod with copper bonding thickness ranging from 100 to 250 microns, the electrode offers excellent conductivity, corrosion resistance, and mechanical strength. The inner flat electrode is also copper coated and filled with a crystalline conductive compound that enhances current dissipation while maintaining low earth resistance. Designed for long service life exceeding 15 years, the electrode is ideal for industrial, commercial, utility, and residential earthing applications. The product has been tested and validated by NABL and CPRI laboratories, ensuring compliance with quality and performance standards.

Key Features

• Copper bonded steel rod construction
• Copper coating thickness from 100 to 250 microns
• Inner flat electrode is copper coated
• Filled with crystalline conductive compound
• Very high electrical conductivity
• Excellent corrosion resistance
• Service life exceeding 15 years
• Tested by NABL and CPRI accredited laboratories
